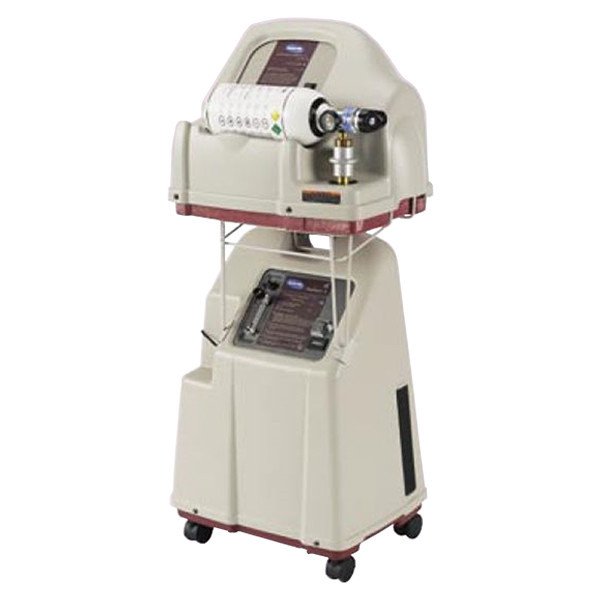

Reconditioned Invacare HomeFill II Oxygen Tank Filling System - Platinum Concentrator

6 reviews   |


Download Platinum Owners Manual

Download Homefill Owners Manual

The Invacare HomeFill II Oxygen Compressor new standard Ambulatory Package includes the following for $1,495.00
  • 1 Year Warranty on Invacare Concentrator
  • 90 Day Warranty on HomeFill Compressor
  • (1) HomeFill II Compressor
  • (1) Concentrator
  • (1) M6 Tank with 0-8LPM constant flow regulator
  • (1) HomeFill II Rack

HomeFill II Oxygen Compressor - The Invacare HomeFill II complete home oxygen system will revolutionize ambulatory oxygen by allowing patients to fill their own high-pressure cylinders from a concentrator. The HomeFill is a multi-stage pump that simply and safely compresses oxygen from a specially equipped Invacare 5-liter or 10-liter concentrator into oxygen cylinders in size ML4, ML6 and M9(c).


  • Connection and controls are designed for ease of operation
  • Fill cylinders while patient continues to receive oxygen from concentrator
  • Virtually eliminates the high service costs of frequent deliveries of cylinders and-or liquid oxygen
  • Gives ambulatory patients greater freedom and independence
  • Small and lightweight

Oxygen Concentrator -

The Invacare Platinum is a very affordable, whisper quiet and reliable 5 LPM in home - stationary oxygen concentrator unit that is “MADE IN AMERICA “ in either the Ohio or Florida assembly plants.

The Platinum is a sleek and compact unit that fits into most any space. It has a built in rugged handle on the top of the machine, and features four large caster wheels which allows for ease of movement and mobility.

This Oxygen Concentrator has an adjustable flow meter which ranges from .5 LPM to 5 LPM that is adjustable in ½ LPM increments which can accommodate the various needs of most oxygen end users. There is a recessed area on the front of the machine to easily place an optional humidifier bottle, which is held in place by a sturdy elastic strap

The Invacare Platinum is designed to reliably deliver 87% to 93% oxygen purity levels while in operation at any setting.

The Platinum is very energy efficient and economical to operate as is uses on average only 585 watts of power at the low flow settings.

This Oxygen Concentrator will provide you with several years of safe, reliable and trouble free service and is designed to operate effortlessly and efficiently on a 24/7 basis.

The sound level of the Platinum is only 50dbA and is significantly quieter than earlier models of oxygen concentrators which were louder, heavier and cumbersome.

The maintenance for the Invacare Platinum Oxygen Concentrator is exceptionally minimal and designed to be easy to maintain. On either side of the Oxygen Concentrator is a foam filter that is placed inside a recess. Simply remove the filter from the recessed area and clean it in your sink once a week. Let it air dry, and replace it. Annually, you will replace the foam filter as well as the plastic HEPA filter located behind the left side access door. There is also a Bacteria filter inside the machine, located behind the flow meter. While it is a "lifetime filter" designed to be used for 20,000 hours, we do include a new one with our replacement Filter Kits. No tools are needed for the filter changes, unless you decide to change the internal Bacteria filter. Then you will need a #2 size Phillips head screw driver to remove the cover. Total time to change all the filters is about 10 minutes.

The Invacare Platinum is available with a humidifier bottle option, that is used with distilled water only. This humidification moistens the high purity oxygenated air so that it minimizes the discomfort to the patients nose and throat from the air being to dry.

This oxygen concentrator is designed for home settings or at any location where a long life stationary unit can be used which operates on 120 VAC and 60 HZ.

The concentrator should never be used in conjunction with extension cords, power strips or surge protectors as it will interfere with the proper operation and potentially cause the concentrator to overheat or have other operational issues.


Low Purity Sensor

SenseO2 (Low Purity Sensor) is a standard feature for the Invacare PerfectO2 Oxygen Concentrator. The built in sensor ultrasonically measures the purity of output oxygen, to ensure that a safe oxygen level is always maintained while the Oxygen Concentrator is running. If the output of the Oxygen Concentrator drops below 82%, the green "normal" light will switch to a yellow "low o2" light will turn on. The Oxygen Concentrator will provide a visual and audible alarm to indicate that there is an unsafe condition. The user should contact OxygenPlus Customer Service to facilitate repairs or replacement of the machine.

Features of the Invacare Platinum Oxygen Concentrator

  • Model IRC5LX
  • Easy to transport and store at 52 lbs.
  • Compact, ergonomic design takes up less space and looks less like a medical device.
  • One of the quietest mainstream oxygen concentrators (<50dbA).
  • Uses less power and produces less heat, so concentrator is more patient friendly.
  • Durable Cannula attachment
  • Available with and without SenseO2 (oxygen purity indicator)
  • *** The humidifier bottle platform is designed to be compatible with all bottle styles and features an easy to use elastic strap.
  • The Invacare Platinum Concentrator includes a 1 year warranty.
  • This unit is fully compatible with the Invacare Homefill Home Filling Station.
  • 20% Longer life over the previous version

Specification of the Invacare Platinum Oxygen Concentrator

  • Input Voltage: 120 VAC +/- 10%
  • Input Frequency: 60 Hz
  • Average Power Consumption: 390 watts
  • Oxygen Concentration (at 5 LPM)*: 93% (+/- 3%)
  • Liter Flow: 0.5 - 5 liters per minute
  • Weight: 52 lbs. (14 kg)
  • Sound Level: 50 dBA typical
  • Dimensions (H x W x D): 26.5 in. (673 mm) H x 18.5 in. (470 mm) W x 14.5 in (368 mm) D
  • SenseO2 (Oxygen Percentage Indicator) Alarm Levels: Low Oxygen: 82%
  • Very Low Oxygen: 70%
  • Operating Temperature: 55°F to 90°F (12°C to 32°C)
  • Storage / Transport Humidity: -30°F to 160°F (-34°C to 71°C) up to 95% relative humidity
  • Operating Humidity: up to 95% relative humidity
  • Outlet Pressure: 5.5 PSI
  • Operating Altitude: 0 to 7500 ft (0 to 2286 m)
  • Warranty: 1 Year

Specification of the Invacare Homefill Compressor

  • Power:Consumption: 200 watts
  • Electrical: 120VAC 60Hz
  • Rated Current Input:2.0 amps
  • Pressure:14 - 21 psi
  • Oxygen:Output from concentrator: 0 - 3 lpm (while filling cylinder)
  • Input: 0 - 2 lpm
  • Dimensions:20.25"W x 15"H x 16"D
  • Product Weight:33 lb
  • Cylinder Filling Times:M6: 1 hr 25 min
  • M9: 2 hr 20 min
  • Quantity:1 per case
  • Warranty:1 year new, 90 days reconditioned

Cleaning of the Invacare Platinum Oxygen Concentrator

Periodically, you will want to clean the exterior of your Oxygen Concentrator to keep it looking as well as it runs. It is important that you unplug the machine while cleaning it. Using a damp cloth, gently wipe the exterior of the machine. Using cleaning tools such as cotton swabs is perfectly okay, to clean the hard to reach areas. If using a medical disinfectant, make sure to follow all manufacturers instructions. Let the machine air dry before operation, as excess moisture may impair the proper operation of the device.


How does an oxygen concentrator work?
An Oxygen Concentrator is an electrical piece of equipment. You plug it in to the wall outlet of your home. Make sure it has at least 6 inches of room all around it to allow ample air flow. When you turn the machine on, it will bring in air from the room around it. First, the air passes through a couple of filters to clean the air before it enters the compressor. Once inside, the compressor will pump the air into a pair of Sieve Beds. Once the Sieve Beds are pressurized, the material inside called Zeolite will cling on to the Nitrogen, and pass on the Oxygen and other trace gasses to the patient. Every ten to twelve seconds, the internal Valves will switch the air from one Sieve Bed to the other. This produces a rhythmic "breathing" sound from your Oxygen Concentrator, and is normal. During the breathing of your Oxygen Concentrator, the Nitrogen that was in the Sieve Bed is released back in to the rooms atmosphere. Oxygen Concentrators are designed to run 24 hours a day, seven days a week if needed.

What percentage of oxygen does an Oxygen Concentrator deliver?
Oxygen Concentrators are designed to reliably deliver 90% oxygen +/- 3% at any flow rate. This purity has been tested to be clinically acceptable for long-term oxygen therapy.

How often should I clean filters and other accessories?
If equipped, the foam Cabinet Filter on your Oxygen Concentrator should be rinsed in your sink every week. Let it air dry before placing back in the Oxygen Concentrator. The bubble humidifier should be washed daily using a mild detergent and hot water. Tubing, Cannulas, etc are not to be cleaned. Simply dispose of and replace as needed.

Can I purchase a Low Flow (Pediatric) meter for my Oxygen Concentrator?
Most Oxygen Concentrators can be ordered with, or retrofit with a Pediatric Flor Meter. Please call for availability.

What length of Oxygen Tubing can I use with my Oxygen Concentrator?
The maximum recommendation is not to exceed a Bubble Humidifier, a 50 foot long extension hose, and a 7 foot long Nasal Cannula

How can I transport an Oxygen Concentrator in the car?
The optimum way to transport an Oxygen Concentrator is to buckle it in to the back seat, or place it on the rear floor of your vehicle. If necessary, you can safely lay it on it's back in the trunk if it is securely held in place.

Can I use my Oxygen Concentrator overseas?
The Oxygen Concentrators listed on this site are made specifically for US Voltage requirements, which is 110 Volts and 60Hz

What is Turn Down technology?
This Oxygen Concentrator incorporates Turn Down technology. The internal Circuit Board constantly monitors the flow rate and will slow down the compressor at lower Flow Rates. As a result the unit runs cooler and less power is consumed. In turn, you will have a lower power bill, and the Oxygen Concentrator should run longer.

How can I tell if the oxygen purity is good?
If equipped with a Low Purity Sensor, as long as the Green LED light is illuminated, you know that the Oxygen Concentrator is making at least 85% purity Oxygen. If for any reason the Purity falls below therapeutic levels, the Yellow LED light will illuminate. Contact your provider if you notice this.
